This article describes the steps required to implement SSL within IIS, RMS's infrastructure framework, and for its managed devices.
Once an SSL certificate has been created (self-signed web hosting certificate, internal Certificate Authority certificate, or an external CA certificate) and imported into IIS, the following actions need to be taken:

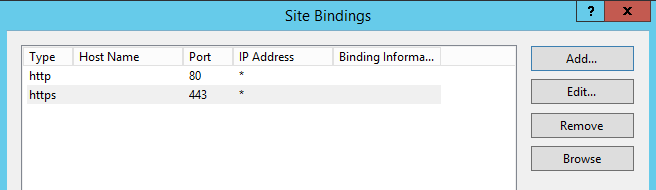

- Add a HTTPS binding to the relevant web site:
- Select the SSL certificate that should be associated with this binding.
Note: Do not enter a host name value nor enable the 'Require Server Name Indication' option if a self-signed certificate will be used.
Note: The HTTP binding can remain because when IIS is configured to require SSL it will reject any HTTP calls.
- If all applications and virtual directories within the web site will use SSL, then configure the web site to require SSL:
Note: If en existing environment is being changed to HTTPS, then this option should not be enabled until all DS's and managed devices have received new configurations that include the SSL entry points.
- If any application or virtual directory utilises WebDAV, then configure the web sites WebDAV feature to require SSL access:
- Edit the relevant distribution server object within the OVERVIEW tab so that it uses HTTPS as its protocol as well as its required port.
- Edit the relevant distribution location object within the DISTRIBUTION tab so that it uses HTTPS as its protocol as well as its required port.
- Edit the relevant reporting location object within the REPORTING tab so that it uses HTTPS as its protocol as well as its required port.
- Perform a verify configuration action so that all DS's receive an updated 'hierarchy.cfg' file.
- Redistribute either the global failover package or the relevant group(s) failover package(s) so that managed devices will receive upüdated failover locations the next time they perform an update policy action.
- If an 'mgssetup.ini' file is used to install the managed device and a self-signed certificate will be used, then the following lines need to be added to this section:
; If you use https with not signed certificates,
; it’s better to disable certificate checks
; for this remove ; in front by desc37-desc38 and val37-val38
desc37 = CheckCertificateRevocation
val37 = False
desc38 = CheckServerCertificate
val38 = False
Note: the descxx and valxx numbers should be changed to meet your specific INI entries.
- For existing managed devices, their managed device settings package(s) should be modified to include the following two options if a self-signed certifcate is being used:
Note: Change the package version before re-distributing it.
